Replacement Garage Door Springs Calgary

  • Call Centre Support

    Call centre garage door spring Calgary order support available to help you find your correct Calgary garage door replacement spring and process your order.
    1-844-448-9243
    Mon to Fri 9:00am - 4:00pm MST

  • Garage Door Springs Shipped Next Day –– Pick up in-store same day

    Stock replacement Calgary garage door spring orders received before 1pm MST will be picked, packaged and shipped the following business day.

  • Choose Your Shipping Method

    Replacement garage door springs can be packaged and shipped to you or you can pick up replacement garage door springs at one of our Calgary replacement garage door spring stores.

  • 100% Canadian

    Lock Surgeon has been supplying services for over 35 years. We are a 100% Canadian family owned and operated service company.
    Door & Lock Surgeon Supply

1 4

Replacement garage door springs Calgary In-store pick-up available at:
Door and Lock Surgeon Supply Calgary 2020 32 Ave. NE
or
Edmonton 17812 118 Ave. NW
Edmonton South 5738 75 St.

For mobile repair service click the red link –– Mobile Repair Service

Under The List of Calgary Replacement Garage Door Springs Below Is An Easy to Use Garage Door Replacement Spring Sizing Chart, Replacement Garage Door Spring Measuring Instructions & Garage Door Spring Measuring Video

Easy to Use Garage Door Replacement Spring Sizing Chart & Instructions

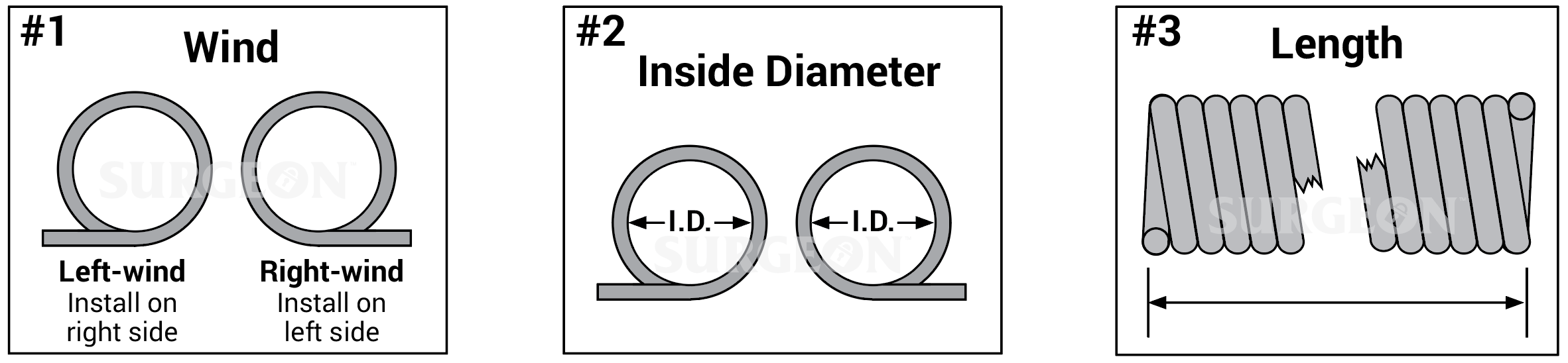

#1 To determine the wind of the garage door replacement spring needed review the old garage door spring and match the spring wind to diagram #1 below.

#2 To determine the garage door replacement spring inside diameter measure
as per diagram #2 below.

#3 The length of your replacement garage door spring can be measured from your current garage door spring, you may have to join the two broken spring halves together in order to determine the full length of the replacement garage door spring needed as in diagram #3 below.

#4 To determine the garage door spring wire size use the chart below. Column one asks for the total length of 10 coils in inches or column two asks for total length of 20 coils in inches. Match the length of your measurement to the first or second column to determine your garage door spring wire size which is in the third column.

End result:
You may need a:
#1 left wind or right wind garage door spring.
#2 You must determine the inside diameter. The common garage door spring inside diameter is 2".
#3 Total length of both broken pieces of garage door spring needed.
#4 Garage door replacement spring wire size as per chart. Yellow highlighted sections are common spring wire sizes.

Beside spring photos below is a list of standard spring sizes first number is (#4)wire size, then second number listed is (#2)inside diameter of spring & third number listed (#3)total length of spring. Spring wind is not part of standard sizes listed but is required when ordering a new replacement torsion spring and can be determined using example (#1)Left or right wind is determined by looking at your original garage door spring.

Example spring size description: Wire size .207 x Inside diamteter 2" x Total length 24"

First standard size spring listed in column next to 3 garage door spring photos below is that of what was explained above and shown as Standard Size .207 x 2" x 24"

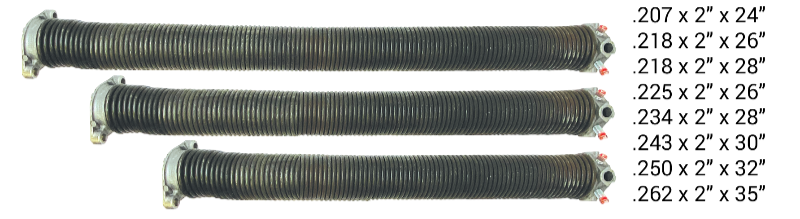

Sample of Garage Door Springs with Various Common Sizes

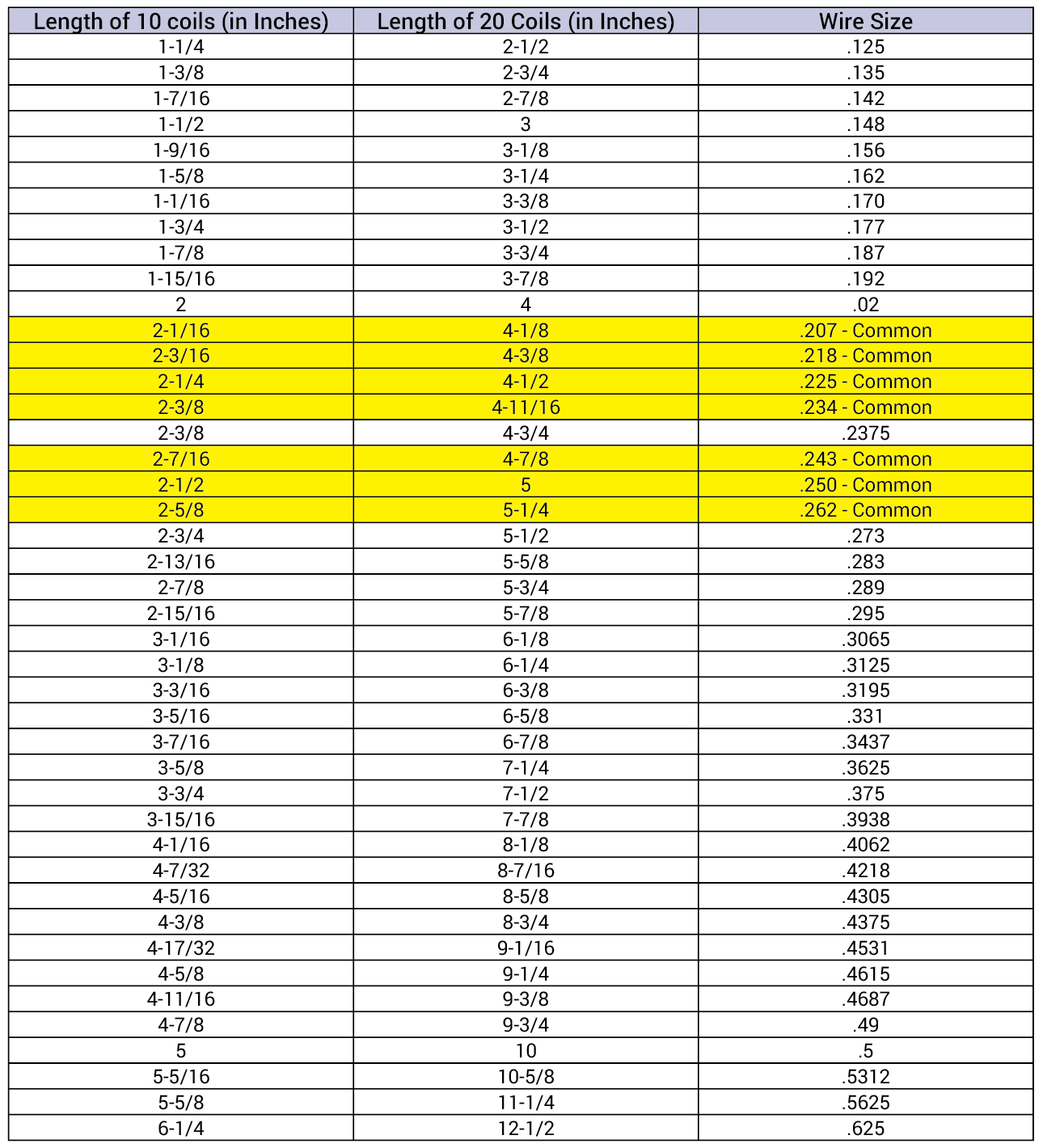

#4 Chart below can be used to determine area #4 wire size of replacement
garage door spring.
First column asks for length of 10 coils
Second column asks for length of 20 coils
Third column is the resulting wire size determined by the previously
measured lengths.

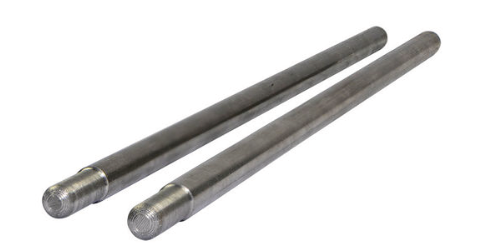

Garage Door Spring Winding-Pins:

It is highly recommended that you use the appropriate garage door spring winding-pins when releasing garage door spring tension or reinstalling garage door springs and adding spring tension.

How to Measure Garage Door Springs

You are welcome to call our 1-844-448-9243 for assistance in determining garage door springs required.

When making garage door spring repairs or garage door spring replacements it is always recommended to replace both springs in a double spring garage door system. Garage door spring replacement should be done by a trained professional and care and safety must be taken when working with springs with tension or under load.
All 2" replacement garage door springs are rated for 10,000 cycles, made from oil tempered high-carbon steel with cast aluminum winding cones and steel beveled set screw.

Shown above are common Calgary replacement garage door spring sizes.
Custom size or non-common replacement garage door springs can be
suppled as needed.
Call 1-844-448-9243 for additional assistance.

Door and Lock Surgeon stocks a large number of common garage door torsion springs to help you with your broken or worn garage door spring replacement in an existing garage door.

Priced and displayed above are common residential garage door replacement springs, best practice is to replace both garage door springs if you currently have 2 garage door springs that operate your door.

Please Note: All torsion spring sales are final, ensure you have taken the time to order the correct garage door replacement spring parts.
As noted above, the garage door spring replacement spring team at Door and Lock Surgeon Supply are ready to assist you in making your online garage door replacement spring Calgary purchase.

Click to View Additional Pages of Interest

Door and Lock Surgeon Supply Calgary Replacement Garage Door Springs

Door and Lock Surgeon Supply Calgary replacement garage door springs centre can provide you with support when making your online garage door replacement spring purchase.

Our Calgary garage door replacement spring parts counter can guide you through purchasing the correct replacement spring.

Order your garage door replacement spring online to be shipped to you or visit one of our two Calgary garage door spring parts centres for in-store product pick up.

Our team of expert garage door spring parts technicians are well trained in garage door spring replacement and are happy to help.

Below map shows garage door spring repair parts centre located at
2020 32 Ave NE Calgary Door and Lock Surgeon Supply Calgary

In Store Pick Up Store Hours:
Mon - Fri 8:30am - 5:00pm
Sat 10:00am - 2:00pm

Meeting The Needs Of Residential And Commercial Building Owners in Calgary
